GRIPWELL

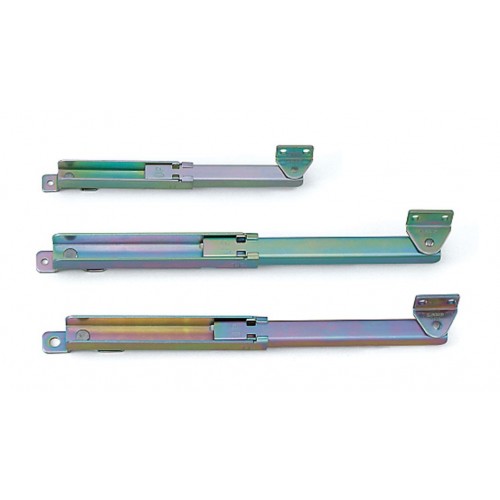

Foot Stay
GYF
- Automatically locks door when fully opened
- Simply lift the stay with foot toe to release the lock
- Non-handed: Can be installed on left or right side
- Designed for bottom mount
- Components to install to aluminium frame also available
| Part No. | Tension Force (kg) | Compression Load (kg) | CAD | Quantity | |
| GYF-200 | 90 | 50 | Download |
|
|
| GYF-300 | 150 | 60 | Download |
|
|
| GYF-300-T50 | 150 | 60 | Download |
|
