GRIPWELL

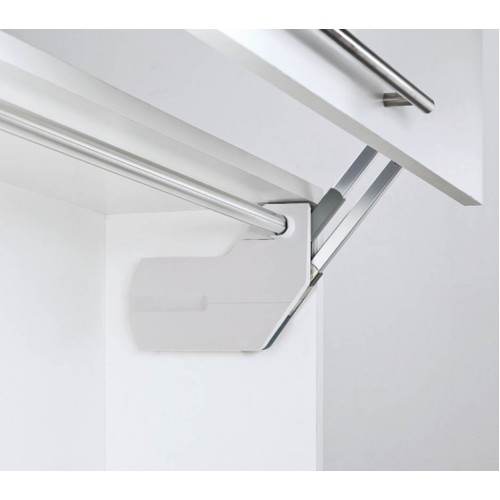

Swing Lift-Up Stay
GSLU-ELAN
- Patented mechanism controls door opening and closing softly and smoothly
- Door can be opened with a slight force
- Door can be stopped in any position
- Door closes slowly even if you release your hands from the
- Door can be opened and closed smoothly regardless of handle position
- Installed on the bottom of cabinet top board for maximum space inside the cabinet, not affecting the shelf mounting
- Installation position of the main body can be easily determined
- Mounting plate can be quickly attached to the main body
- Passed 30,000 life cycle test
| Part No. | Description | Door Weight (kg) | Cabinet Inside Width (mm) | CAD | Quantity | |
| GELB-1080 | Connecting Bar | - | 1156 ~ 1166 | Download |
|
|
| GELB-1380 | Connecting Bar | - | 1456 ~ 1466 | Download |
|
|
| GELB-1680 | Connecting Bar | - | 1756 ~ 1766 | Request |
|
|
| GELB-480 | Connecting Bar | - | 556 ~ 566 | Download |
|
|
| GELB-780 | Connecting Bar | - | 856 ~ 866 | Download |
|
|
| GSLU-ELAN-H4 | Main Body | 9.5 ~ 11.0 | - | Download |
|
|
| GSLU-ELAN-L4 | Main Body | 6.5 ~ 8.0 | - | Download |
|
|
| GSLU-ELAN-M4 | Main Body | 8.0 ~ 9.5 | - | Download |
|
|
| GSLU-ELAN-S4 | Main Body | 5.0 ~ 6.5 | - | Download |
|
